The Titan™
Call 1-888-4MARK77 (1-888-462-7577) to speak with a Mark 7 Sales Specialist to help build the perfect commercial package to meet your loading needs.
NOW SHIPPING PROCESSING & PRIMING CONFIGURATIONS

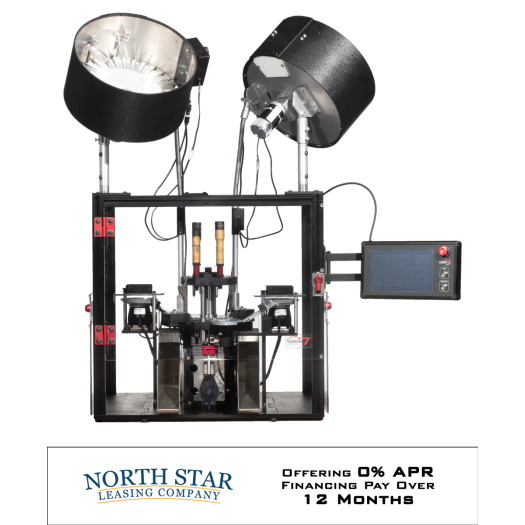

The Mark 7 Titan Loading System was developed through the experience we have from creating tens-of-millions of rounds through Mark 7’s original commercial press, The Revolution. Titan is a very versatile and configurable machine, allowing the user to custom tailor their press towards their specific needs. The adjustable press stroke will accommodate rounds from 380 ACP to 338 Lapua, making the Titan truly a one-size-fits-all, commercial powerhouse. Independent servo motors control the shell plate, drive mechanism and primer disk, giving the user unmatched control and tune-ability.
The All-New Titan is double feed capable, allowing one press to run as two separate 6 station machines setup for processing, priming, or loading with pre-primed brass configurations doubling production output.
Features:
- 12 station press with toolhead die stations in single feed configuration and 10 die stations in double feed configuration
- Capable of speeds over 5000 rounds per hour
- Motorized Shell plate and Primer disk for precise and smooth indexing
- Robust Core chassis comprised of All precision CNC machined parts
- Hardened steel and Aluminum parts
- All new pneumatic Bullet dropper pre seats the projectile
- Commercial Grade Case feeder and Bullet feeders
- Ability to Double Feed, doubles output every cycle
- New XL Powder Measure with Geared drivetrain with double powder capacity (capable of feeding extruded powder)
- Preset toolhead height adjustment; variable stroke allows for no wasted time when loading pistol calibers, but with a press of a button can accommodate large rifle rounds
- Robust, industrial machine HMI with physical Emergency stop button
- All new Electronics control box with future sensor and accessory support
- Full Machine enclosure available
Digital Sensors Available:
- Decap Sense
- Swage Sense
- Bullet Sense
- Digital Powder Check
- Primer Orientation Sensor
Over 5,000 Rounds Per Hour
Compatible with Mark 7® Sensors & Accesories
12 Station Press with 11 toolhead die stations in single feed configuration and 10 die stations in double feed configuration
Supports One-Pass Rifle/Pistol Processing and Loading if Used in Single Feed Configuration
Available in Multiple Configurations (brass processing, loading, priming)
| SKU | 101-1300 |
|---|---|
| Number of Die Stations | 12 station press with toolhead die stations in single feed configuration and 10 die stations in double feed configuration |
| Caliber Range | 380 Auto to 338 Lapua |
| Rounds per Hour | Over 5,000 |
| Drive System | Direct Geared Drive |
| Priming System | Onboard Primer Collator/ Motorized Disk |
| Type of Case Feeder | 14" metal construction, up to 5800 rph |
| Type of Powder Measure | Geared Drivetrain with double powder capacity |
| Bullet Feeder | Pneumatic Bullet dropper |
| Digitally Controlled | New Remote System |
| Sensors Included | Torque and Jam Sense (additional sensors optional) |
